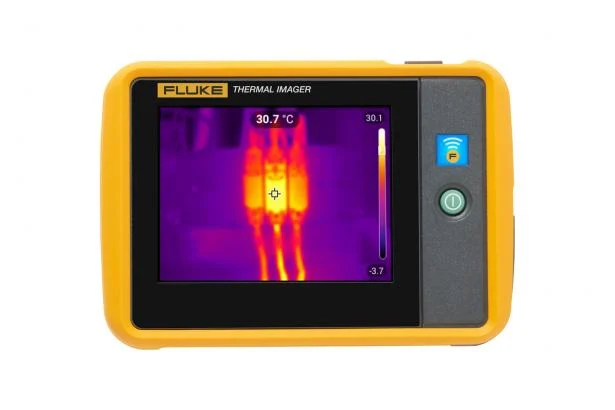

Compact Pocket Thermal Camera

Logo FLuke

PTI120-400

Portable thermal camera for industrial inspection

In the right place. At the right time. With the right tool.

SKU: PTI120 Categories: , , Tag:

Description

  • -20°C to 400°C ( -4°F to 752°F)
  • 3.5" LCD touchscreen display for easy troubleshooting



Specifications

Key Features
IFOV (spatial resolution) 7.6 mRad
Infrared resolution 120 x 90 (10,800 pixels)
Field of view 50° H x 38° V
Distance to spot 130:1
Temperature measurement range (not calibrated below -10 °C) -20 °C to 400 °C
Focus system Fixed focus, minimum focus distance 22.8 cm
USB Mini USB used to transfer image to PC
Wifi Yes
Image quality
IR-Fusion technology Yes, adds the context of the visible details to your infrared image
AutoBlend mode Continuous 0% to 100%
Touchscreen display 3.5’’ (landscape), 320 x 240 LCD
Rugged, ergonomic design Yes
Thermal sensitivity (NETD) 60 mK
Frame rate 9 Hz
Data storage and image capture
Memory ≥ 2GB internal flash memory
Image capture, review, save mechanism One-handed image capture, review, and save capability
Image file formats Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files
Software Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system
Export file formats with software JPG, IS2
Measurement range -20 °C ~ 400 °C
Battery
Batteries (rechargable) Internal rechargeable lithium ion battery
Battery life ≥ 2 hours continuous (without WiFi)
Battery charging time ≤ 1.5 hours
Battery charging system Mini USB cord from product to PC
AC operation With separate AC to USB adapter. Not included in box.
Power saving Automatic Shutdown:
5, 10, 15 and 20 minutes or never
Temperature measurement
Temperature measurement range (not calibrated below -10 °C) -20 °C to 400 °C
Accuracy Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2%
On-screen emissivity correction Yes
On-screen reflected background temperature compensation Yes
Color palettes
Standard palettes 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale
General specifications
Infrared spectral band 8 μm to 14 μm (long wave)
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -40 °C to +70 °C (-40 °F to 158 °F)
Relative humidity 95% non-condensing
Center-point temperature Yes
Spot temperature Hot and cold spot markers
Safety EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility EN301 489-1 V2.1.1 EN301489-17 V3.1.1
US FCC CFR, Part 15C
Vibration and shock 2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop 1 meter
Size (H x W x L) 8.9 cm x 12.7 cm x 2.5 cm
(3.5 in x 5.0 in x 1.0 in)
Weight (battery included) 0.233 kg (0.514 lb)
Enclosure rating IP54
Warranty Two-years
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
