Description

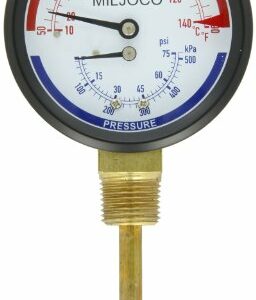

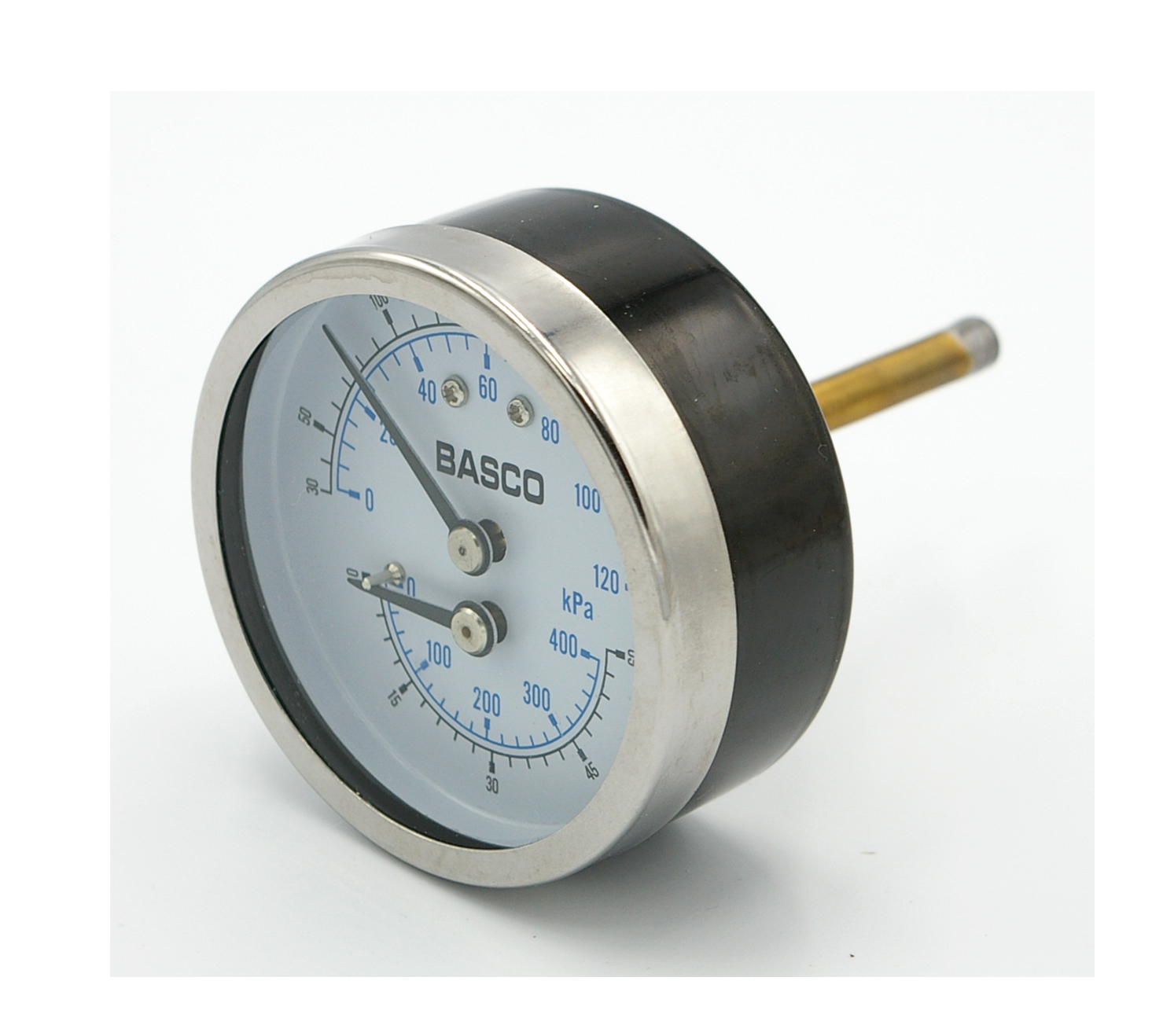

They are the ideal choice for boilers and other hot water applications where space limitations and installation costs are a consideration. These instruments contain both a bourdon tube assembly to indicate pressure, and a bimetal coil assembly to indicate temperature in both Fahrenheit and Celsius.
- CASE: Steel, black painted, IP50
- RING: chromed brass
- LENS: Glass.

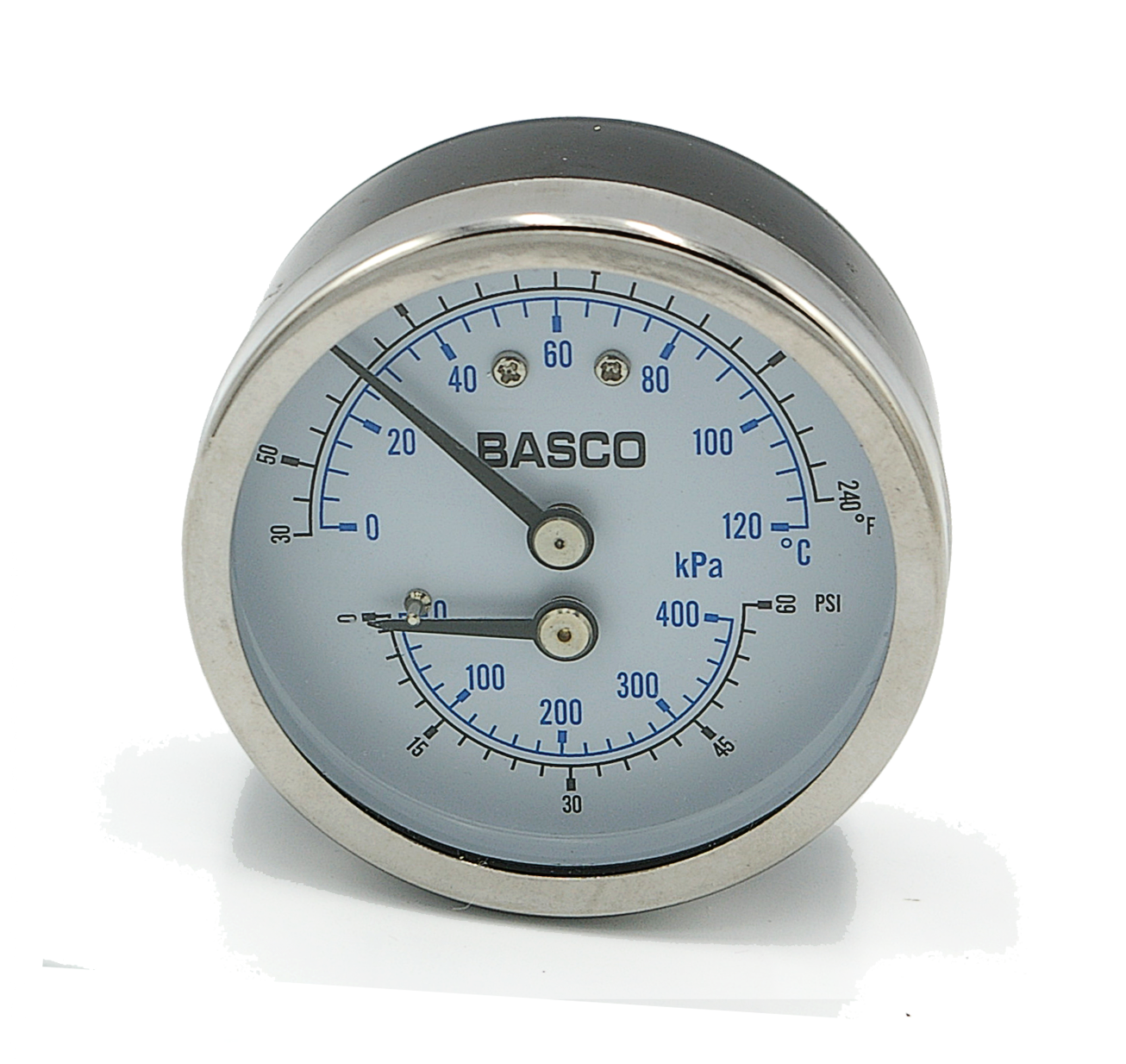

- DIAL: Aluminum, white finished with red temperature and blue pressure markings.
- RANGES: psi/kPa, °F/C
- MOVEMENT: Brass.
- BOURDON TUBE: Phosphor bronze.

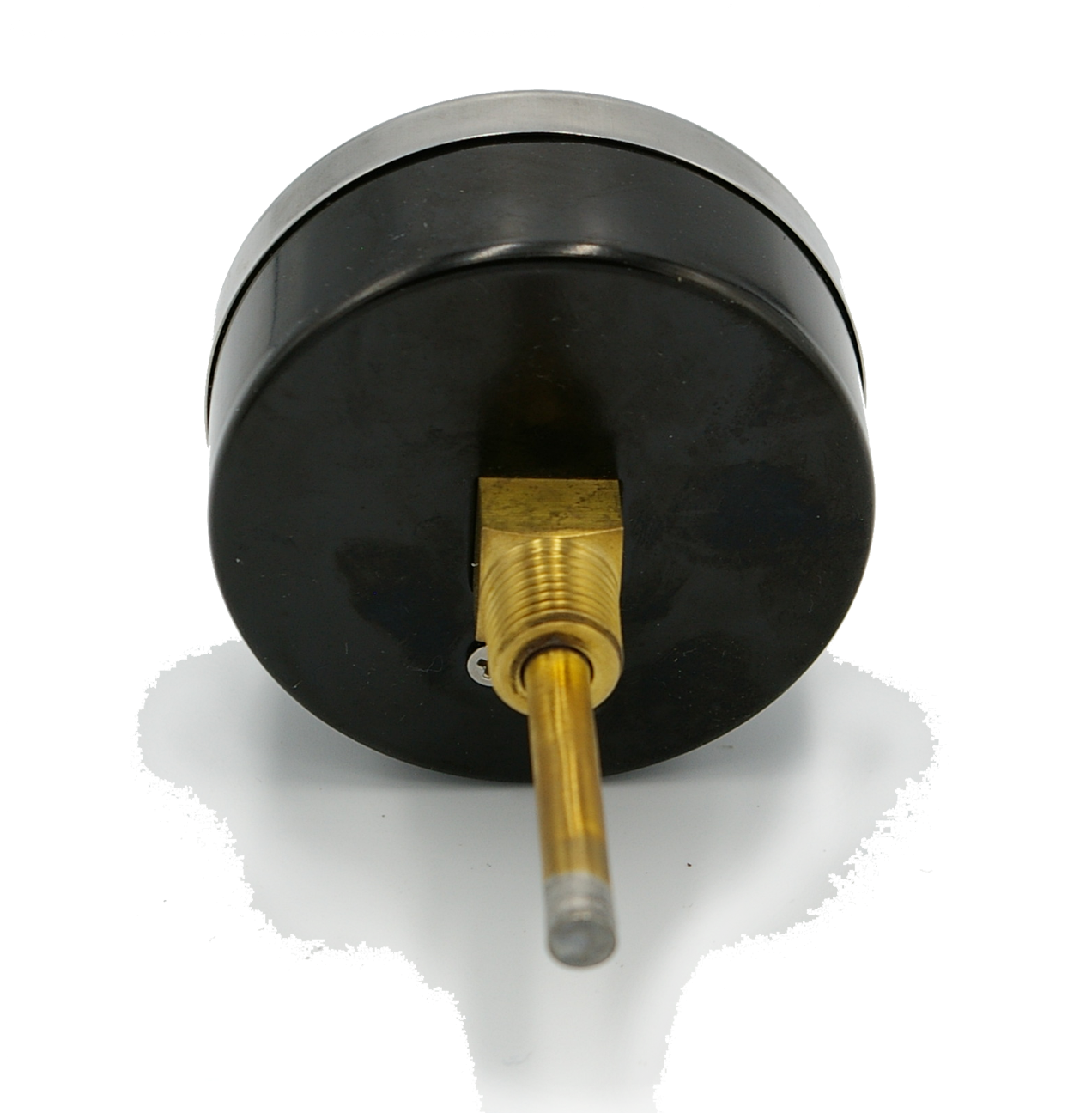

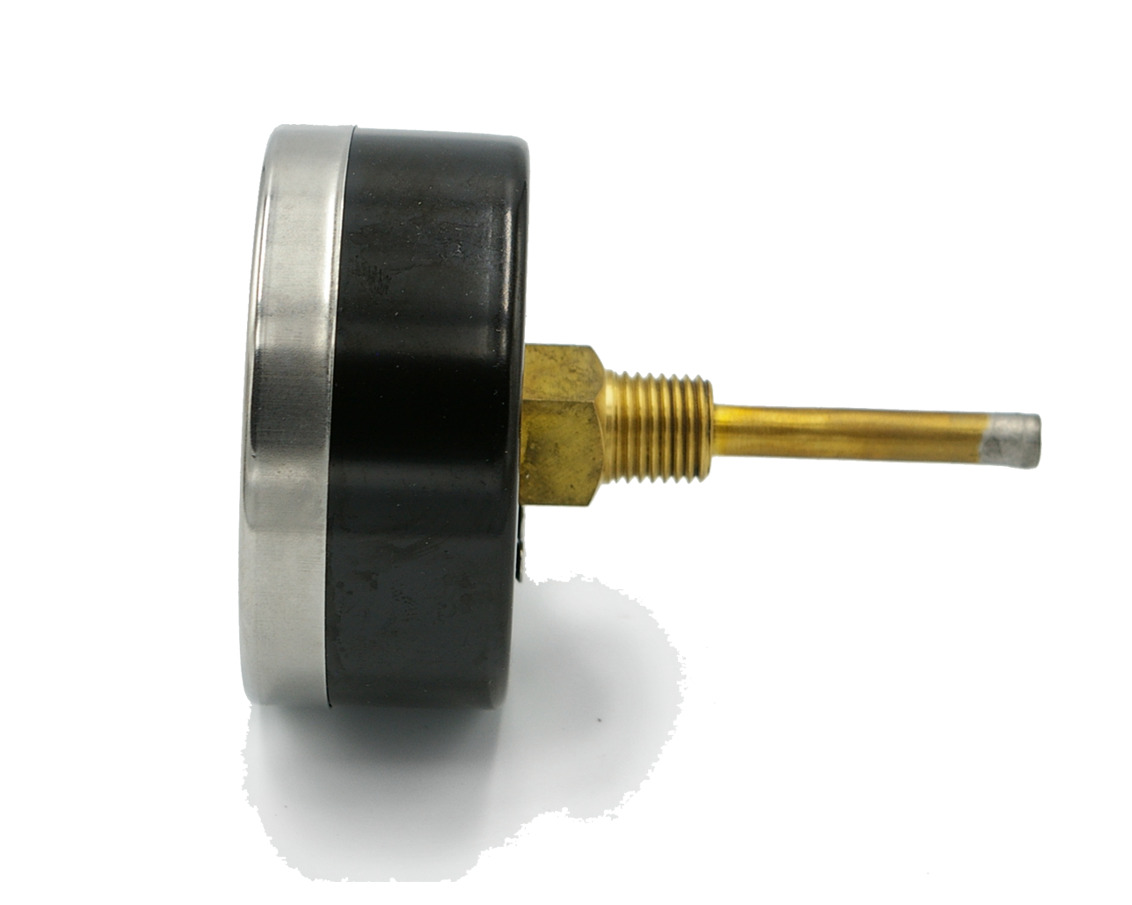

- CONNECTION: brass, ¼"NPT or ½"NPT, lower mount (LM) or center back mount (CBM)
- ACCURACY: Pressure scale: ±3-2-3%, Temperature scale: ±One scale division.
- AMBIENT TEMPERATURE: (-10 to 120°C).
| Model | Description | Pressure | Temperature |
| WP63CBM-422 | 63mm (2½"), center back mount ¼"NPT | 0/60 psi 0/420 kPa |
0/120°C 30/240°F |
| WP63CBM-426 | 63mm (2½"), center back mount ¼"NPT | 0/200 psi 0/1400 kPa |
0/120°C 30/240°F |
| WP80CBM-222 | 80mm (3"), center back mount ½"NPT | 0/60 psi 0/420 kPa |
0/120°C 30/240°F |
| WP80LM-222 | 80mm (3"), bottom mount ½"NPT | 0/60 psi 0/420 kPa |
0/120°C 30/240°F |
